Supplying a wide range of high-quality rack and pinion construction hoists.
Equipment Hire
NTP offer a wide range of Passenger & Goods Hoists, Transport Platforms, Goods only Hoists and Scaffold Winches, with many being available as a singular or twin configuration. We can also provide a range of accessories with our hoists. These include Landing Protection Panels, Landing Infill plates, Landing Bridges, ‘Top Hats’, Roof Extensions, Scaffold Carriers, Cast-in sockets and Wireless Call Systems, etc.

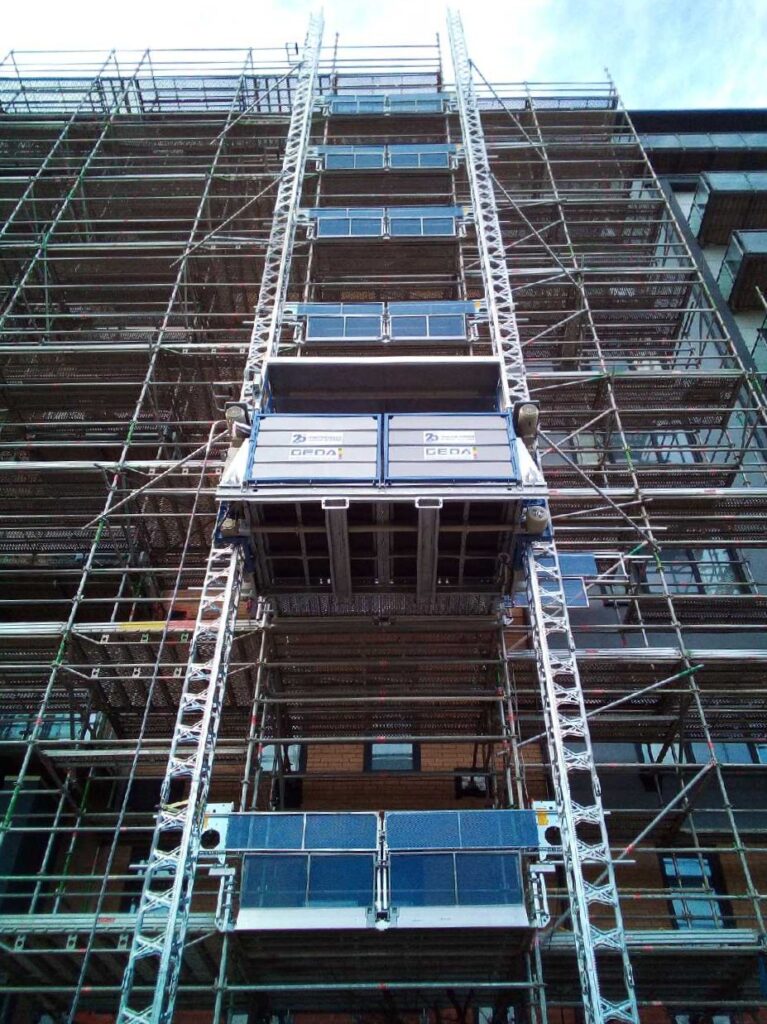

Passenger & Goods Hoist
NTP provide a range of modern European Manufactured fully enclosed Passenger & Goods Hoists, all of which are inverter-driven. This offers several advantages including reduced power consumption and soft start / stop functionality. These hoists are equipped with an operator display panel and diagnostic system. They can also be configured with a number of options, including C Gates, a Wireless Call System, ‘Top Hat’ Roof Extensions and Landing Bridges.
Our fleet of Passenger & Goods Hoists are available in a range of car sizes with Payloads of 1700Kg to 4000Kg. These machines also have operating speeds of up to 60m/min.
| Max Capacity (Kg) | L | W | H | Configuation | Max Passengers | Machine Name | Enquire | |
|---|---|---|---|---|---|---|---|---|
| 1700 | 4.25 | 1.40 | 2.30 | A42 | 12 | Bocker LX-PM | > | https://ntp-group.com/contact-us/?Hoist_type=Passenger Goods&swl=1700kg&Length=4.25&Width=1.40&Height=2.30#specific |
| 1700 | 5.10 | 1.40 | 2.30 | A51 | 12 | Bocker LX-PM | > | https://ntp-group.com/contact-us/?Hoist_type=Passenger Goods&swl=1700kg&Length=5.10&Width=1.40&Height=2.30#specific |
| 2000 | 3.40 | 1.40 | 2.30 | A34 | 12 | Bocker LX-PM | > | https://ntp-group.com/contact-us/?Hoist_type=Passenger Goods&swl=2000kg&Length=3.40&Width=1.40&Height=2.30#specific |
| 2000 | 3.00 | 1.50 | 2.50 | - | 28 | Bocker BK2030FC | > | https://ntp-group.com/contact-us/?Hoist_type=Passenger Goods&swl=2000kg&Length=3.00&Width=1.50&Height=2.50#specific |
| 2000 | 3.80 | 1.50 | 2.50 | - | 28 | Bocker BK2038FC | > | https://ntp-group.com/contact-us/?Hoist_type=Passenger Goods&swl=2000kg&Length=3.80&Width=1.50&Height=2.50#specific |
| 2000 | 3.20 | 1.55 | 2.10 | 20/32 | 25 | GEDA PH | > | https://ntp-group.com/contact-us/?Hoist_type=Passenger Goods&swl=2000kg&Length=3.20&Width=1.55&Height=2.10#specific |
| 2000 | 3.20 | 1.50 | 2.40 | 20/32 | 25 | STROS NOV | > | https://ntp-group.com/contact-us/?Hoist_type=Passenger Goods&swl=2000kg&Length=3.20&Width=1.50&Height=2.40#specific |
| 2700 | 3.70 | 1.50 | 2.40 | 27/38 | 28 | STROS NOV | > | https://ntp-group.com/contact-us/?Hoist_type=Passenger Goods&swl=2700kg&Length=3.70&Width=1.50&Height=2.40#specific |
| 2700 | 3.70 | 1.55 | 2.10 | 27/37 | 28 | GEDA PH | > | https://ntp-group.com/contact-us/?Hoist_type=Passenger Goods&swl=2700kg&Length=3.70&Width=1.55&Height=2.10#specific |
| 4000 | 5.00 | 3.00 | 3.10 | 40/50 | 30 | STROS NOV | > | https://ntp-group.com/contact-us/?Hoist_type=Passenger Goods&swl=4000kg&Length=5.00&Width=3.00&Height=3.10#specific |
Transport Platforms
Our comprehensive range of Transport Platforms are supplied by market leading European manufacturers in a range of configurations. These machines are highly modular and offer a versatile and cost-effective alternative to Passenger & Goods hoists.
In addition, Transport Platforms can carry large volume loads whilst offering reduced tie and base loadings when compared to Passenger & Goods Hoists. Our Transport Platforms are supplied with diagnostic systems and can be configured with several options. These include C Gates (single mast machines only), Roof Extensions, optional landing gate configurations, and Wireless Call System etc.
Our fleet of Transport Platforms are available in a range of platform sizes with payloads of 300Kg to 2300kg. These machines also have operating speeds of up to 12m/min.
Previous
Next
| Max Capacity (Kg) | L | W | H | Max Passengers | Configuation | Machine Name | Enquire | |
|---|---|---|---|---|---|---|---|---|
| 300 | 1.40 | 0.85 | 2.00 | 3 | - | Bocker MX320 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=300kg&Length=1.40&Width=0.85&Height=2.00#specific |
| 650 | 1.70 | 1.40 | 1.80 | 4 | A17 | Bocker MX624 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=650kg&Length=1.70&Width=1.40&Height=1.80#specific |
| 1000 | 1.70 | 1.40 | 1.80 | 6 | A17 | Bocker MX1024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1000kg&Length=1.70&Width=1.40&Height=1.80#specific |
| 1200 | 4.25 | 1.40 | 1.80 | 7 | A42 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1200kg&Length=4.25&Width=1.40&Height=1.80#specific |
| 1200 | 5.10 | 1.40 | 1.80 | 7 | A51 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1200kg&Length=5.10&Width=1.40&Height=1.80#specific |
| 1200 | 1.70 | 4.50 | 1.80 | 7 | B45 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1200kg&Length=1.70&Width=4.50&Height=1.80#specific |
| 1500 | 1.70 | 1.40 | 1.80 | 6 | A17 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1500kg&Length=1.70&Width=1.40&Height=1.80#specific |
| 1500 | 2.50 | 1.40 | 1.80 | 7 | A25 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1500kg&Length=2.50&Width=1.40&Height=1.80#specific |
| 1500 | 3.40 | 1.40 | 1.80 | 7 | A34 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1500kg&Length=3.40&Width=1.40&Height=1.80#specific |
| 1500 | 1.70 | 3.00 | 1.80 | 7 | B30 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1500kg&Length=1.70&Width=3.00&Height=1.80#specific |
| 1600 | 2.50 | 2.90 | 1.80 | 7 | ED Plus | GEDA 1500ZZP | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1600kg&Length=2.50&Width=2.90&Height=1.80#specific |
| 1700 | 4.25 | 1.40 | 1.80 | 7 | A42 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1700kg&Length=4.25&Width=1.40&Height=1.80#specific |
| 1700 | 5.10 | 1.40 | 1.80 | 7 | A51 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1700kg&Length=5.10&Width=1.40&Height=1.80#specific |
| 1700 | 1.70 | 4.50 | 1.80 | 7 | B45 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1700kg&Length=1.70&Width=4.50&Height=1.80#specific |
| 1700 | 4.25 | 1.40 | 1.80 | 7 | A42 | Bocker LX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1700kg&Length=4.25&Width=1.40&Height=1.80#specific |
| 1700 | 5.10 | 1.40 | 1.80 | 7 | A51 | Bocker LX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=1700kg&Length=5.10&Width=1.40&Height=1.80#specific |
| 2000 | 1.70 | 1.40 | 1.80 | 6 | A17 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=2000kg&Length=1.70&Width=1.40&Height=1.80#specific |
| 2000 | 2.50 | 1.40 | 1.80 | 7 | A25 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=2000kg&Length=2.50&Width=1.40&Height=1.80#specific |
| 2000 | 3.40 | 1.40 | 1.80 | 7 | A34 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=2000kg&Length=3.40&Width=1.40&Height=1.80#specific |
| 2000 | 1.70 | 3.00 | 1.80 | 7 | B30 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=2000kg&Length=1.70&Width=3.00&Height=1.80#specific |
| 2000 | 1.65 | 2.90 | 1.80 | 7 | E | GEDA 1500ZZP | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=2000kg&Length=1.65&Width=2.90&Height=1.80#specific |
| 2000 | 1.65 | 2.90 | 1.80 | 7 | ED | GEDA 1500ZZP | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=2000kg&Length=1.65&Width=2.90&Height=1.80#specific |
| 2000 | 1.65 | 4.35 | 1.80 | 7 | G | GEDA 1500ZZP | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=2000kg&Length=1.65&Width=4.35&Height=1.80#specific |
| 2000 | 1.65 | 4.35 | 1.80 | 7 | GD | GEDA 1500ZZP | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=2000kg&Length=1.65&Width=4.35&Height=1.80#specific |
| 2000 | 2.55 | 1.40 | 1.80 | 7 | A25 | Bocker LX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=2000kg&Length=2.55&Width=1.40&Height=1.80#specific |
| 2000 | 3.40 | 1.40 | 1.80 | 7 | A34 | Bocker LX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=2000kg&Length=3.40&Width=1.40&Height=1.80#specific |
| 2300 | 1.70 | 1.40 | 1.80 | 7 | A17 | Bocker LX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Transport Platforms&swl=2300kg&Length=1.70&Width=1.40&Height=1.80#specific |
Goods Hoists
We supply a large range of modern European Manufactured Goods Hoists, suitable for a range of projects from small scaffolding jobs to large new build construction projects.
Our fleet of Goods Hoists are available in a range of platform sizes with payloads of 300Kg (240v) hoists to 2300Kg, operating at speeds of up to 24m/min.
Previous
Next
| Max Capacity (Kg) | L | W | H | Max Passengers | Configuation | Machine Name | Enquire | |
|---|---|---|---|---|---|---|---|---|
| 300 | 1.40 | 0.85 | 2.00 | N/A | - | Bocker Z320 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=300kg&Length=1.40&Width=0.85&Height=2.00#specific |
| 300 | 1.40 | 0.85 | 2.00 | N/A | - | Bocker MX320 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=300kg&Length=1.40&Width=0.85&Height=2.00#specific |
| 500 | 1.45 | 1.65 | 2.00 | N/A | - | GEDA 500Z | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=500kg&Length=1.45&Width=1.65&Height=2.00#specific |
| 650 | 1.70 | 1.40 | 1.80 | N/A | A17 | Bocker MX624 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=650kg&Length=1.70&Width=1.40&Height=1.80#specific |
| 1000 | 1.70 | 1.40 | 1.80 | N/A | A17 | Bocker MX1024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1000kg&Length=1.70&Width=1.40&Height=1.80#specific |
| 1200 | 4.25 | 1.40 | 1.80 | N/A | A42 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1200kg&Length=4.25&Width=1.40&Height=1.80#specific |
| 1200 | 5.10 | 1.40 | 1.80 | N/A | A51 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1200kg&Length=5.10&Width=1.40&Height=1.80#specific |
| 1200 | 1.70 | 4.50 | 1.80 | N/A | B45 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1200kg&Length=1.70&Width=4.50&Height=1.80#specific |
| 1500 | 1.70 | 1.40 | 1.80 | N/A | A17 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1500kg&Length=1.70&Width=1.40&Height=1.80#specific |
| 1500 | 2.50 | 1.40 | 1.80 | N/A | A25 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1500kg&Length=2.50&Width=1.40&Height=1.80#specific |
| 1500 | 3.40 | 1.40 | 1.80 | N/A | A34 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1500kg&Length=3.40&Width=1.40&Height=1.80#specific |
| 1500 | 1.70 | 3.00 | 1.80 | N/A | B30 | Bocker MX1524 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1500kg&Length=1.70&Width=3.00&Height=1.80#specific |
| 1600 | 2.50 | 2.90 | 1.80 | N/A | ED Plus | GEDA 1500Z | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1600kg&Length=2.50&Width=2.90&Height=1.80#specific |
| 1700 | 4.25 | 1.40 | 1.80 | N/A | A42 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1700kg&Length=4.25&Width=1.40&Height=1.80#specific |
| 1700 | 5.10 | 1.40 | 1.80 | N/A | A51 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1700kg&Length=5.10&Width=1.70&Height=1.80#specific |
| 1700 | 1.70 | 4.50 | 1.80 | N/A | B45 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1700kg&Length=1.70&Width=4.50&Height=1.80#specific |
| 1700 | 4.25 | 1.40 | 1.80 | N/A | A42 | Bocker LX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1700kg&Length=4.25&Width=1.40&Height=1.80#specific |
| 1700 | 5.10 | 1.40 | 1.80 | N/A | A51 | Bocker LX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=1700kg&Length=5.10&Width=1.40&Height=1.80#specific |
| 2000 | 1.70 | 1.40 | 1.80 | N/A | A17 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=2000kg&Length=1.70&Width=1.40&Height=1.80#specific |
| 2000 | 2.50 | 1.40 | 1.80 | N/A | A25 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=2000kg&Length=2.50&Width=1.40&Height=1.80#specific |
| 2000 | 3.40 | 1.40 | 1.80 | N/A | A34 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=2000kg&Length=3.40&Width=1.40&Height=1.80#specific |
| 2000 | 1.70 | 3.00 | 1.80 | N/A | B30 | Bocker MX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=2000kg&Length=1.70&Width=3.00&Height=1.80#specific |
| 2000 | 1.65 | 2.90 | 1.80 | N/A | E | GEDA 1500Z | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=2000kg&Length=1.65&Width=2.90&Height=1.80#specific |
| 2000 | 1.65 | 2.90 | 1.80 | N/A | ED | GEDA 1500Z | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=2000kg&Length=1.65&Width=2.90&Height=1.80#specific |
| 2000 | 1.65 | 4.35 | 1.80 | N/A | G | GEDA 1500Z | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=2000kg&Length=1.65&Width=4.35&Height=1.80#specific |
| 2000 | 1.65 | 4.35 | 1.80 | N/A | GD | GEDA 1500Z | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=2000kg&Length=1.65&Width=4.35&Height=1.80#specific |
| 2000 | 2.55 | 1.40 | 1.80 | N/A | A25 | Bocker LX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=2000kg&Length=2.55&Width=1.40&Height=1.80#specific |
| 2000 | 3.40 | 1.40 | 1.80 | N/A | A34 | Bocker LX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=2000kg&Length=3.40&Width=1.40&Height=1.80#specific |
| 2300 | 1.70 | 1.40 | 1.80 | N/A | A17 | Bocker LX2024 | > | https://ntp-group.com/contact-us/?Hoist_type=Goods&swl=2300kg&Length=1.70&Width=1.40&Height=1.80#specific |
Winches
Our range of both Scaffold Hoists and Beam Winches give large and small contractors alike the manoeuvrability required to lift materials safety, with a lifting range of 200kg – 2500kg.
These winches are built with durability and reliability in mind. In addition, NTP offer weekly inspections to keep your equipment safe and operational.
Scaffold Hoists
| Max Capacity (Kg) | Hook Drop | Lifting Speed | Power Supply | Machine Name | Extendible Bracket | Enquire | |
|---|---|---|---|---|---|---|---|
| 200 | 30m | 19m/min | 110V | IMER ET200N | - | > | https://ntp-group.com/contact-us/?Hoist_type=Winch&swl=200kg#specific |
| 200 | 30m | 19m/min | 110V | IMER TR225N | x | > | https://ntp-group.com/contact-us/?Hoist_type=Winch&swl=200kg#specific |
Beam Winches
| Max Capacity (Kg) | Beam Length | Hook Drop | Lifting Speed | Power Supply | Machine Name | Power Traverse | Enquire | |
|---|---|---|---|---|---|---|---|---|
| 950 | 3 / 6m | 25m | 13.3m/min | 400V | IORI 950E | - | > | https://ntp-group.com/contact-us/?Hoist_type=Winch&swl=950kg#specific |
| 2000 | 3 / 6m | 10m | 4 & 1m/min | 400V | YALE CPV/F | x | > | https://ntp-group.com/contact-us/?Hoist_type=Winch&swl=2000kg#specific |
| 2500 | 3 / 6m | 10m | 8 & 2m/min | 400V | YALE CPV/F | x | > | https://ntp-group.com/contact-us/?Hoist_type=Winch&swl=2500kg#specific |
